A Caterpillar 320 excavator opens the first bench cut into a sloping lot in West Lake Hills, and the exposed profile tells you more than any county soil survey ever could. We see alternating seams of Glen Rose limestone and tan calcareous clay, sometimes with a thin layer of terra rossa at the contact. That interface, slick when wet, is where we start calculating. Retaining wall design in Austin rarely follows a textbook geometry. The Edwards Plateau doesn't produce flat, predictable stratigraphy. Instead, we work with wedge-shaped backfill zones, variable rock-head depths within a single property line, and lateral earth pressures that shift from active to at-rest depending on how close the neighbor's pool sits to the property line. Before we draw a single reinforcement schedule, we correlate the excavation observations with SPT drilling data from the upper 20 ft, where refusal on limestone can mask softer interbeds that matter for global stability.
A retaining wall in Austin is a drainage structure first and a gravity structure second; get the water wrong and the reinforcement is irrelevant.
Methodology and scope
Local considerations
A 14-story mixed-use project under construction off South Lamar in 2021 had a 22-ft excavation face held by a temporary soil nail wall. The designer relied on a single boring at the street corner. Two weeks after the nails were installed, a localized slump occurred at the mid-point of the wall, where an unmapped lens of decomposed marl had weathered to a clay-like consistency. The fix involved additional tiebacks, a redesigned drainage bench, and a six-week delay. That scenario replays in micro-scale across Austin's hillside subdivisions every year: a segmental block wall built without a leveling pad keyed into competent rock, or a gravity wall backfilled with on-site fat clay that swells after the first wet season. Retaining wall design here must anticipate what the borings cannot capture between grid points. We cross-check the subsurface model with in-situ permeability tests in any zone where the wall will intercept the seasonal groundwater table, because perched water in fractured limestone can daylight at the face and erode the backfill in a matter of months.
Applicable standards
IBC Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), AASHTO LRFD Bridge Design Specifications (Section 11 – Walls), Austin Drainage Criteria Manual (City of Austin, current edition), ASTM D1586-18 (Standard Penetration Test)
Associated technical services

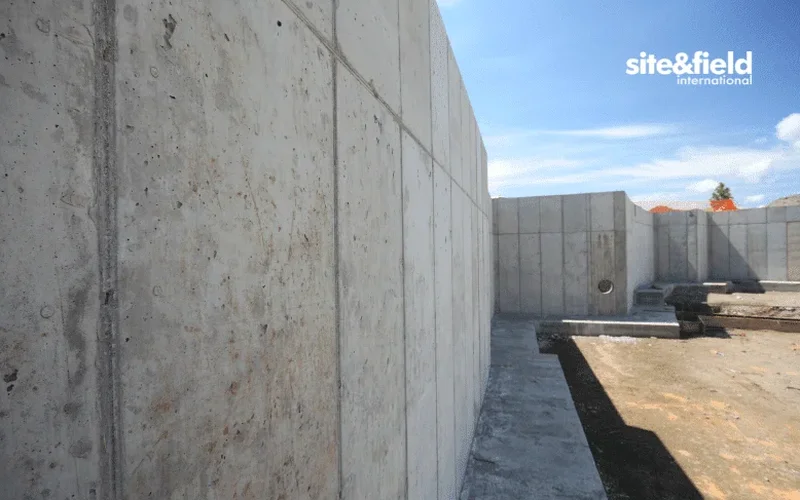

Cantilever and Counterfort Wall Design
Reinforced concrete stem walls up to 18 ft, designed for active and at-rest earth pressures. We size the heel and toe for the bearing capacity of the underlying limestone or engineered fill, and detail the stem reinforcement for the flexural demand at the base, including the additional moment from expansive clay backfill where present.
MSE and Segmental Block Wall Design
Mechanically stabilized earth walls using geogrid reinforcement and segmental concrete facing. We specify the grid type, length, and vertical spacing based on the friction angle of the select backfill, and design the internal drainage to prevent saturation of the reinforced zone.
Soil Nail and Tieback Wall Design
For cuts where space is tight and cantilever excavation is impractical, we design soil nail walls with shotcrete facing and corrosion-protected bar anchors. Our load-transfer analysis accounts for the bond strength of the limestone or cemented clay, verified by on-site pull-out tests during installation.
Typical parameters
Frequently asked questions
What does a retaining wall design package include for a residential lot in Austin?
The package covers a geotechnical investigation with borings or test pits along the wall alignment, laboratory testing of the foundation and backfill soils, lateral earth pressure calculations, structural design of the wall stem and footing (or reinforcement for MSE walls), drainage design per the Austin Drainage Criteria Manual, global stability checks, and a stamped set of construction drawings. For walls over 12 ft or supporting a structure, we also include a site-specific seismic analysis.
How much does retaining wall design cost for a project in the Austin area?
For a typical residential or light commercial retaining wall in Austin, the design fee ranges from US$930 for a straightforward segmental block wall under 6 ft with good site access, up to US$4,180 for a taller cantilever or soil nail wall requiring multiple borings, lab testing, and detailed structural calculations. The final number depends on wall height, site access, and the complexity of the subsurface conditions.
Do Austin building departments require a permit for retaining walls and what triggers a structural review?
The City of Austin requires a building permit for any retaining wall over 4 ft in height measured from the bottom of the footing to the top of the wall. Walls supporting a surcharge (driveway, structure, or public sidewalk) require a structural review regardless of height. Our design drawings are prepared to meet the submittal requirements of both the City of Austin and Travis County for walls up to the height limits specified in IBC Chapter 18.
