Applying ASTM D5778 correctly in Austin requires understanding how the local geology directly impacts cone resistance and sleeve friction readings. The city straddles the Balcones Fault Zone, creating abrupt transitions between stiff limestone, residual clays, and deep alluvial deposits within short distances. A CPT truck mobilized to a site near the Colorado River floodplain encounters radically different stratigraphy than one operating west of the Edwards Aquifer recharge zone. Our field teams correlate tip resistance (qc) and pore pressure (u2) data to identify high-risk layers such as expansive Taylor Clay or unconsolidated terrace sands. We integrate these continuous profiles with laboratory testing on samples from companion test pits to validate soil behavior type classification charts, ensuring the IBC Chapter 18 requirements for site characterization are met with local precision.
A single CPT sounding in Austin can reveal up to 5 distinct soil behavior types within 20 meters, mapping the chaotic stratigraphy of the Balcones Fault Zone without touching a sample.
Methodology and scope
Local considerations
A common error we see with Austin foundations that skip detailed CPT profiling is misinterpreting the thickness of compressible clays underlying a stiff surficial crust. A designer might specify a spread footing bearing on this crust at 1.5 meters depth, unaware that the net cone resistance drops sharply at 3 meters, indicating a soft zone that will consolidate differentially under load. This leads to angular distortion in the structure. Another critical failure mode occurs in the eastern part of the city where sandy terrace deposits overlie clay: without pore pressure dissipation tests, a CPT log may miss a thin, continuous sand layer that acts as a drainage path, accelerating settlement under fill. The consequence is often cracking in slab-on-grade foundations, a costly repair that a properly interpreted pore pressure ratio (Bq) profile could have prevented.
Explanatory video
Regulatory framework
The cone penetration testing methodology follows ASTM D5778-20, IBC Chapter 18 (2021 Edition), and Robertson & Cabal (2015) Guide to Cone Penetration Testing.
Other technical services
CPTu Sounding with Pore Pressure
Piezocone testing to measure qc, fs, and u2. We perform dissipation tests to evaluate the coefficient of consolidation in Austin's clay layers.
Seismic CPT (SCPT)
Downhole shear wave velocity measurement at 1-meter intervals during cone penetration. Essential for IBC seismic site class determination (A through F).
CPT-Based Foundation Analysis
Direct design of shallow and deep foundations from cone data, including bearing capacity by LCPC method and settlement estimation using the Schmertmann approach.
Typical parameters
Frequently asked questions
How deep can a CPT truck penetrate in Austin's rocky terrain?

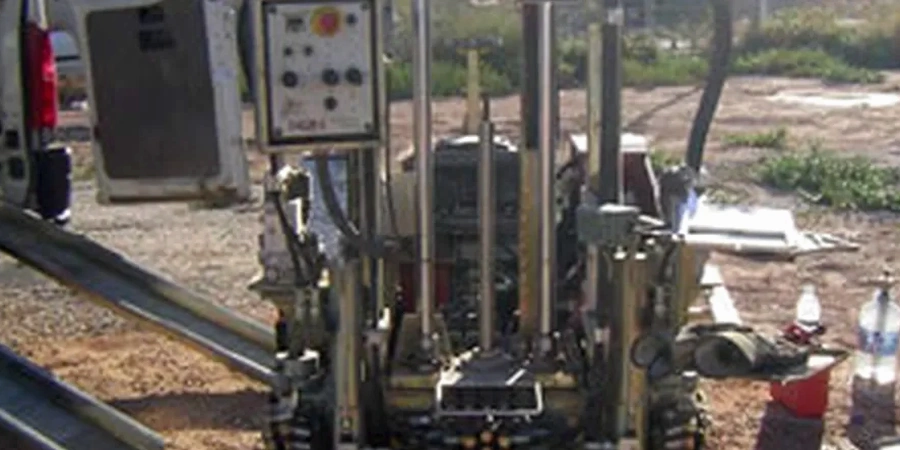

Our 20-ton CPT rigs can typically penetrate through the residual clays and weathered limestone of the Austin area to depths of 15 to 25 meters. However, refusal often occurs on massive limestone layers of the Edwards Group. In these cases, we pre-drill through the hard rock with a rotary drill rig and continue the CPT sounding from the bottom of the pre-drilled hole to profile the underlying materials.
What soil parameters can you derive from a CPT test for a project in Austin?
From the cone resistance and sleeve friction, we derive undrained shear strength (Su) for the Taylor and Del Rio clays using an Nkt factor calibrated for local geology. For granular soils, we estimate relative density (Dr) and friction angle (phi'). The pore pressure data provides the overconsolidation ratio (OCR) and flow characteristics. All interpretations follow Robertson (1990) and updated correlations validated for Texas soils.
